Target Actuators

Pneumatic lift units that present and drop live-fire silhouettes — on the ground, behind a knee wall, on a portable bullet trap, or mounted to the structure itself.

→ Targets & Hit Detection → Infrastructure Comparison

Lift Units

AutoTargets™ Lift Units are available as standard lifting kits (pop-up style) or side lifting kits (swing-up style). Proprietary live-fire HexLink™ or plastic E-Type silhouettes are required for use with AutoTargets Lift Units for hit sensing functionality. Each lift unit can be placed directly on the ground, behind a knee wall, or attached to surfaces with mounts. They can also be used with portable bullet traps with specialty mounts.

Lift units are designed to work with commercially available CO2 and HPA tanks or be connected to clean compressed air, both at 60 PSI (80 PSI for E-Types). The standard WiFi antenna provides connectivity up to 250 yds with line of sight from target to target. Optional equipment can extend the range up to 1,000 yds or provide coverage where line of sight is not available.

A row of lift units set along a concrete knee wall on a desert range, the nearest one holding a Q-style silhouette upright.
Standard lifting kits behind a knee wall, air line running the length of the firing line.

Placement & Mounting

Range types →
Green plastic E-Type silhouettes raised by a row of blue lift units on a concrete pad beside a guard rail at an outdoor range.
Directly on the ground along the firing line — lift units presenting plastic E-Type silhouettes.

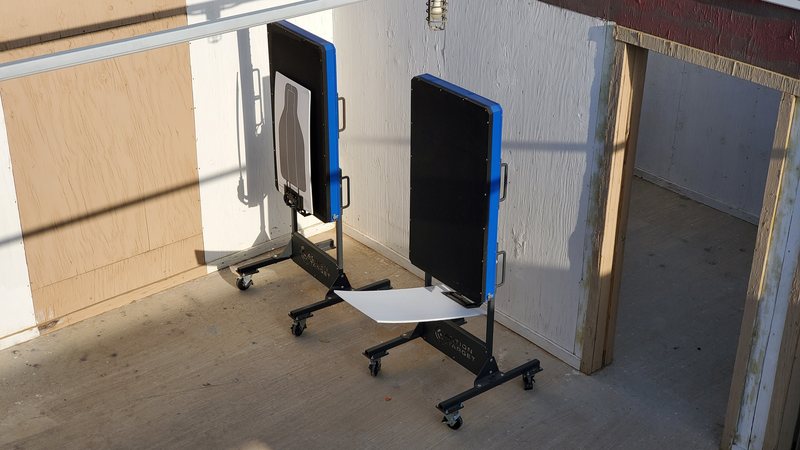

Two wheeled portable bullet traps with blue-framed steel plates standing in a shoot-house bay, the nearer one carrying a paper silhouette.
Portable bullet traps — lift units attach to them with specialty mounts.

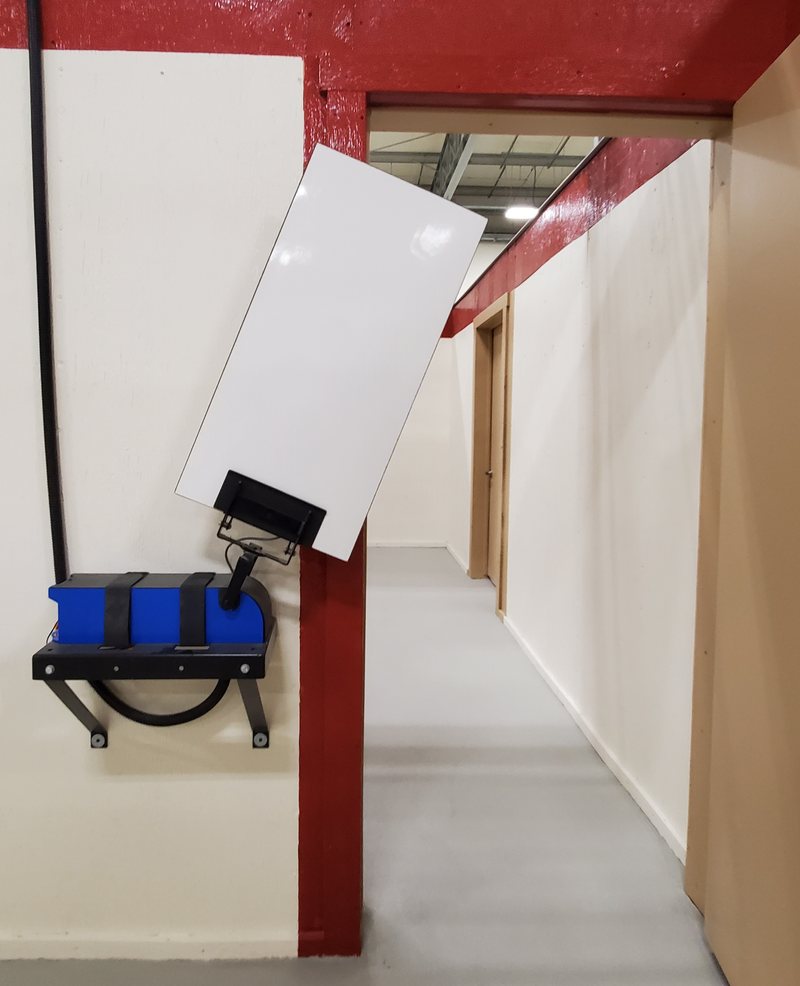

A lift unit bolted to a shoot-house wall, swinging a white target out across a doorway into the corridor beyond.
Attached to surfaces with mounts — a side-lifting unit fixed to a shoot-house wall rather than set on the floor.

Features

  • Modular design
  • Field serviceable
  • Light weight
  • On-board mesh
  • One-button startup
  • Upgradeable

Configurations

  • Standard Pop-Up
  • Bladed / Multi-Lift
  • Bullet Trap Mount
  • Knee-Wall Mount
  • Kinetic Pop-Up

Lift units are controlled from AutoTargets for Android™ or the RangeControl™ Software Suite. Targets and hit sensing are covered on Targets & Hit Detection.

The hardware in service

All clips on YouTube →

How the same lift units get redeployed across very different ranges.

Versatility0:31
Rob On Versatility1:00
